PCI32ADC24: Sensor interface 32 channel acoustic receiver for PCIe systems
- 32 channnels signa-delta ADC card in long PCIe form factor.
- x4 PCI Express (Gen 2). Includes DMA engine with 64 bit addressing capability.
- 8 differential analog output channels. 20 Ohm output impedance. Two pole low pass anti-alias filter. Fc 10 MHz.
- On board clock synthesizer programmable with approximately 1Hz resolution.
- Software Development Kit for 64-bit Linux, with application examples written in ‘C’.
Adobe Reader (free)
or other software that can open PDF files must be installed on your computer to view the documents marked "(PDF)."
Product Description

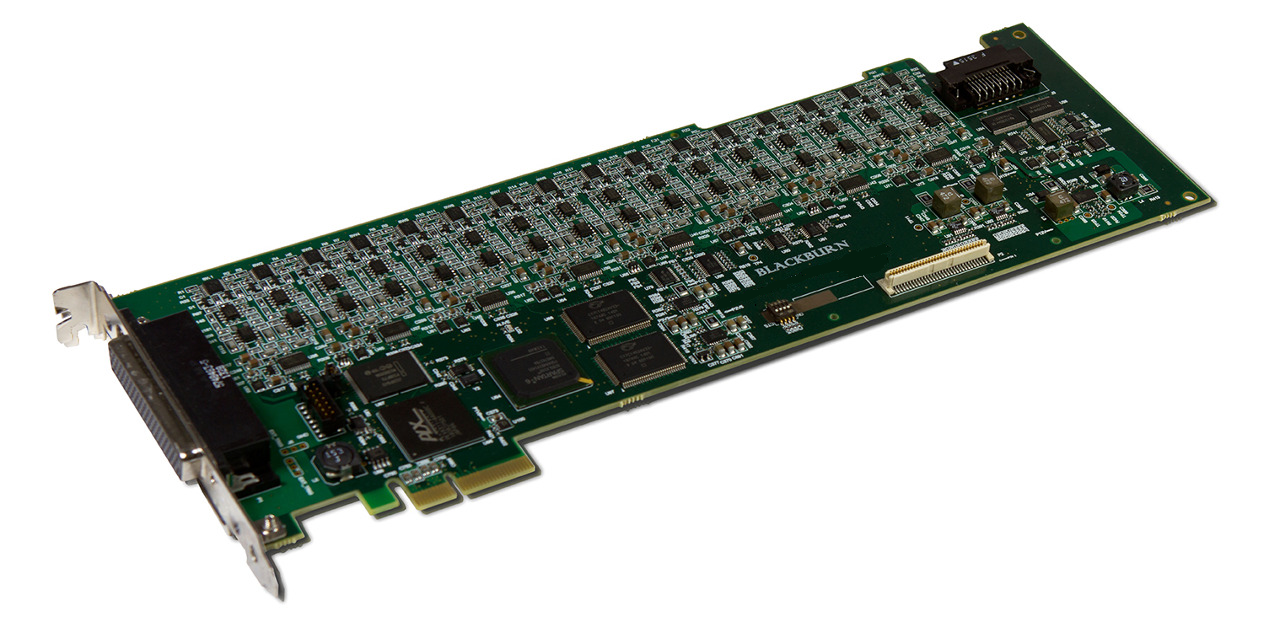

The PCI32ADC24 is a sensor interface card which allows server class PCs to be deployed in a wide variety of acoustic signal processing applications, including sonar beam forming, vibration analysis, geophysics, and other test and measurement applications. This full length PCI Express slot card accepts 32 analog input channels, which it converts to digital data with 24-bit resolution, at sample rates up to 216 kHz. The GB104 design includes precise synchronization between multiple cards; systems can be expanded to support hundreds of channels. Minimal analog signal conditioning is used in the design: only adjustable gain and two pole anti-alias filtering. All other processing is performed using the on board FPGA resources. The PCI32ADC24 can be used as a direct replacement of ICS-610 data acquisition board.
